Electric Counter Balance 3W


Big Joe Forklifts

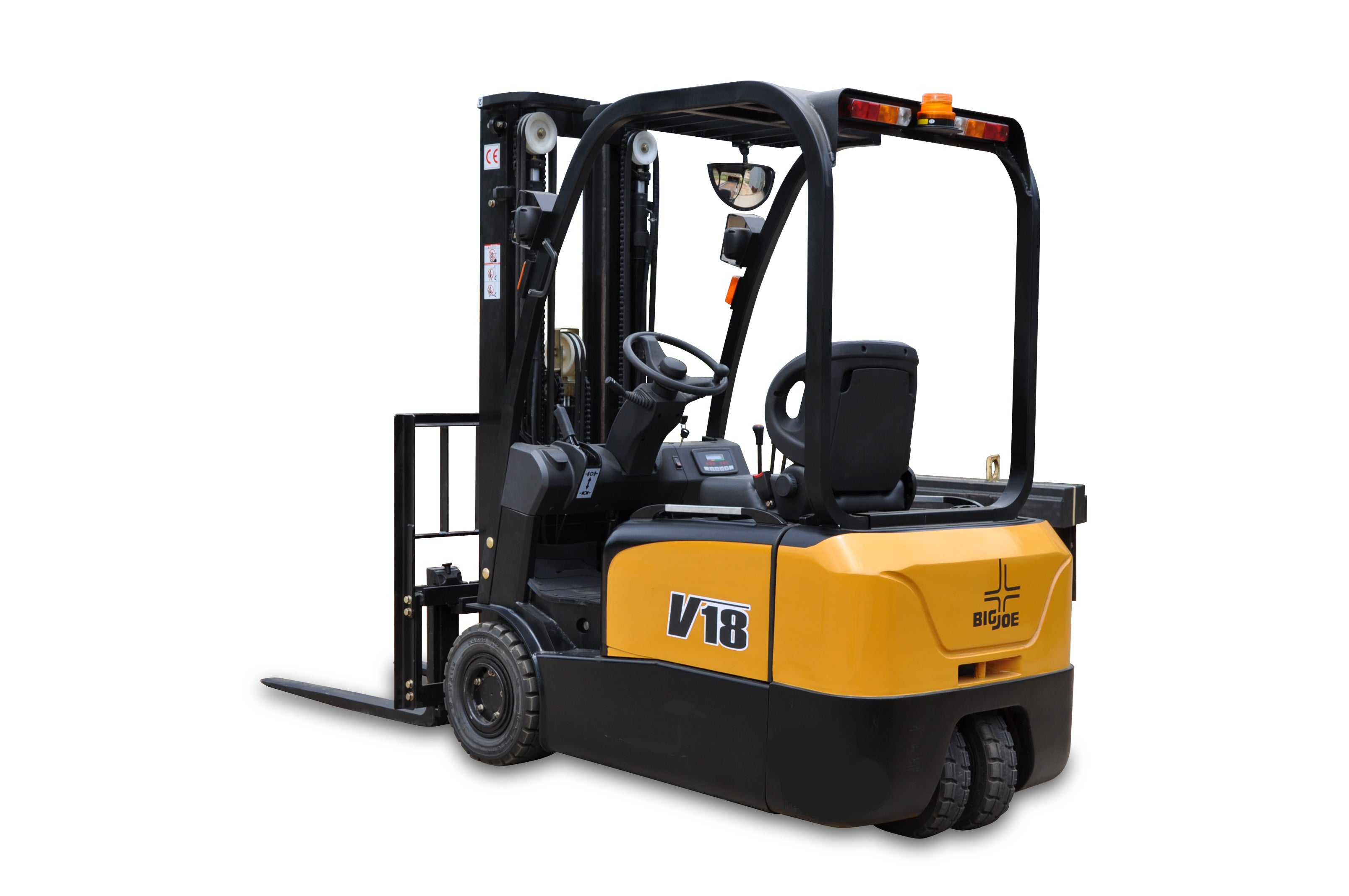

Introducing the V18 3-Wheels Forklift from Big Joe Forklifts, a premium and reliable solution that delivers efficient performance, featuring a wide range of key features to enhance your material handling operations.


24-Volt ZAPI Transistor Control with High Torque AC Drive Motor: The V18 is equipped with a 24-Volt ZAPI transistor control, paired with a high torque AC drive motor, ensuring precise and efficient handling.

Pantograph Fork Extension: The pantograph feature allows the forks to extend beyond the straddle legs, offering enhanced reach and versatility.

Power Steering, Sideshift, Tilt, and Proportional Controls: Enjoy effortless and accurate maneuvring with power steering, sideshift, tilt, and proportional lift, lower, extend, and retract functions.

Choice of Fixed Straddle Legs: Choose between 34"/42" or 42"/50" fixed straddle legs, adapting the V18 to different pallet sizes and aisle widths.

Ergonomic Control Handle: The V18 features an ergonomic control handle with a safety reversing switch and horn for comfortable and safe operation.

Battery Options: Powered by a 48v/405ah Lithium Ion battery, tailored to meet your specific operational requirements. It also comes with a 48v/100ah lithium battery charger.

Battery Discharge Indicator with Hour Meter: Stay informed about battery status and usage with the battery discharge indicator, which includes an hour meter for tracking usage.

Key Switch: The V18 is equipped with a key switch, limiting access to approved personnel and enhancing safety and security.

Reach out to learn more

Mast Options: 4800 mm (Standard)
Technical Specifications
Capacity (kg):

1800 kg

Load Centre Distance (mm):

500 mm

Max Height (mm):

6000 mm

Battery Voltage/Normal Capacity:


Battery Onboard:

Lithium 48V/405Ah with external charger

Travel Speed: (km/h)

14.0/13.0 kph

Drive Control:



Electric Counter Balance 3W
