Order Picker

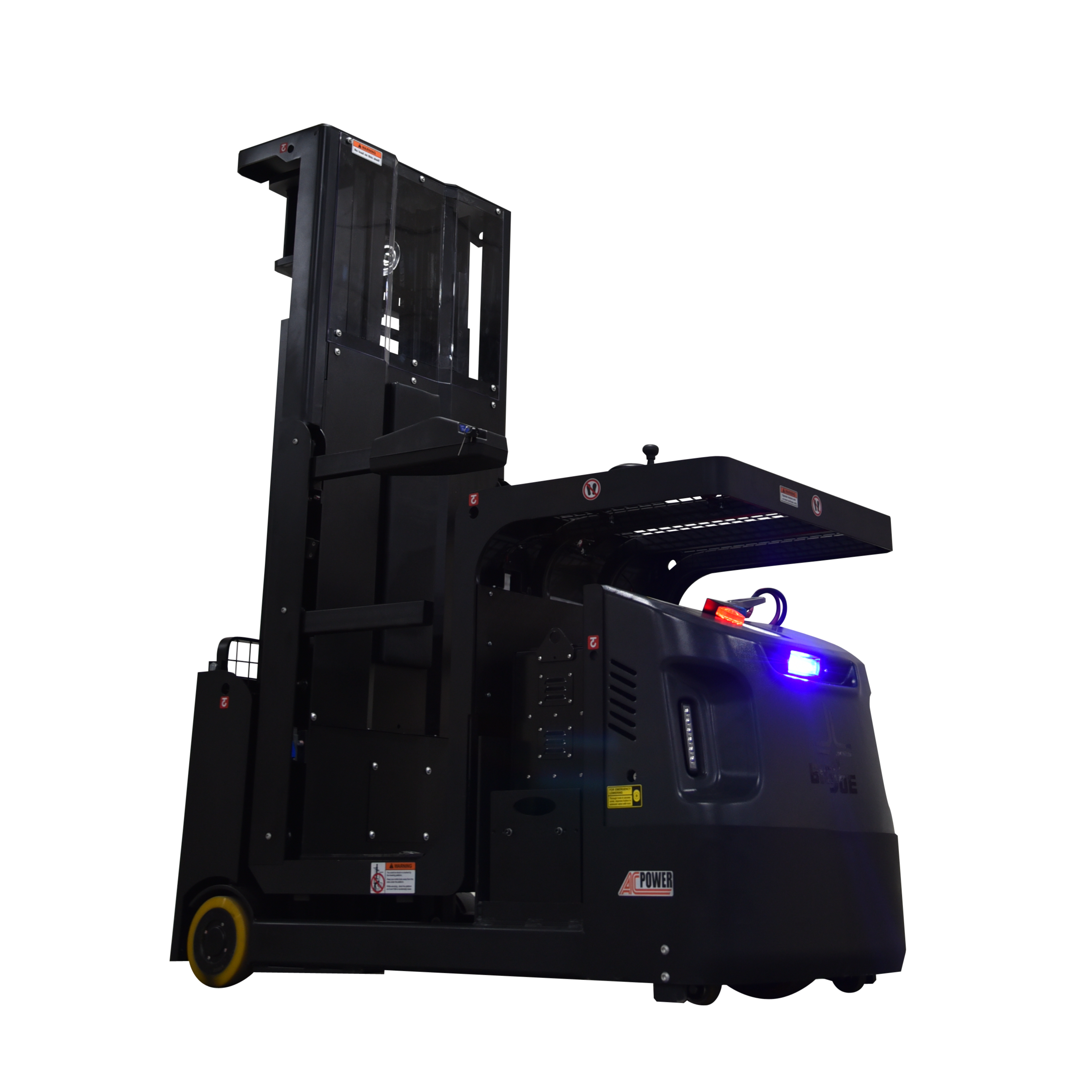

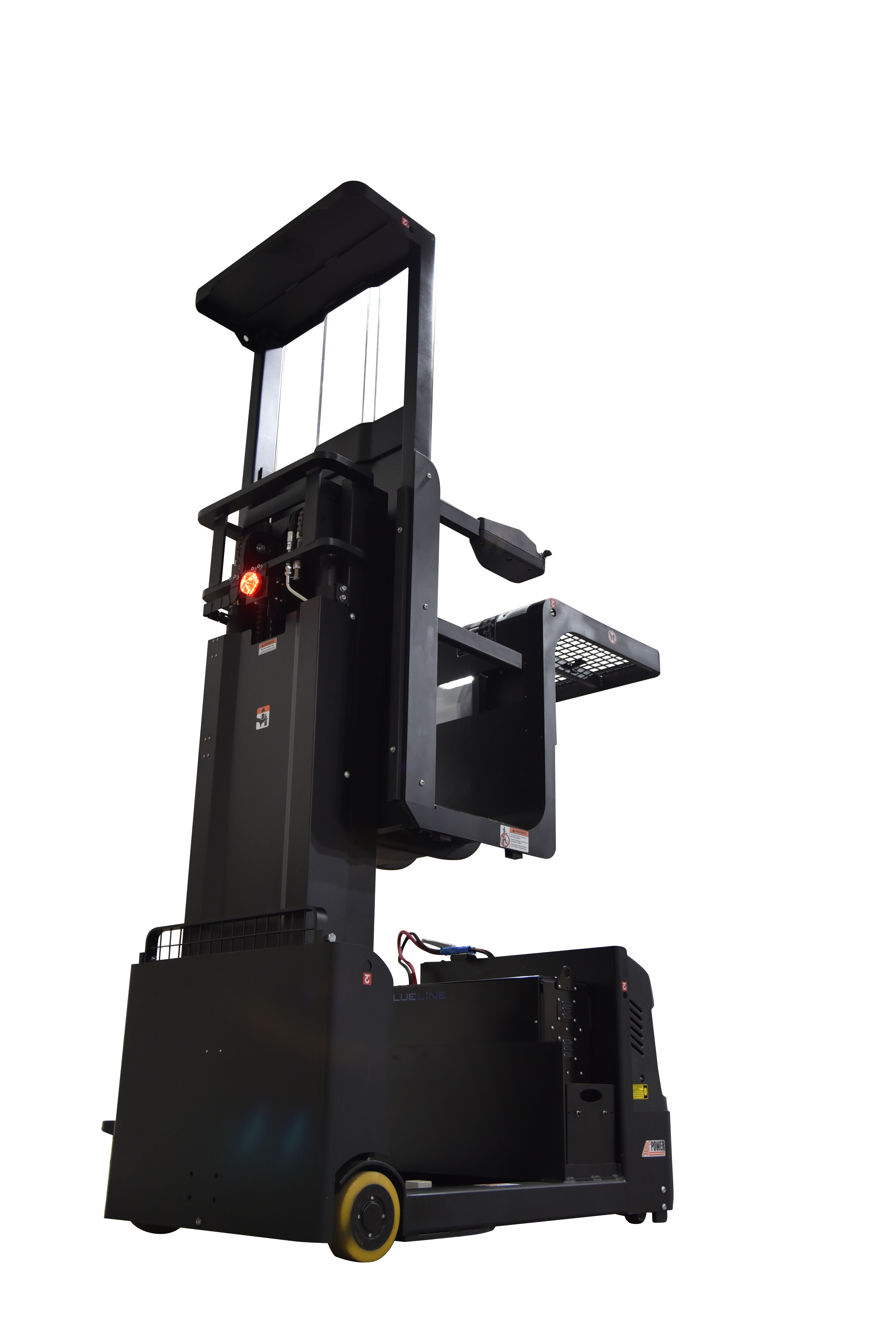

J1-HD Super Joey

The J1HD Super Joey is an exceptional task support vehicle designed to outperform ordinary order pickers and utility vehicles in large warehouses and distribution centres. This powerful machine boasts a higher lift capacity, increased lift height, and faster travel speed, making it a top performer for reaching high racking levels and efficiently navigating between storage and shipping areas. With the option for a cutting-edge 48V Li-ion power system, the J1HD Super Joey delivers outstanding performance, extended run-times, and enhanced duty cycles.

Key Features:

High Lift Capacity: The J1HD Super Joey can handle up to 600 kg total vehicle capacity, including a carrying capacity of 350 kg on the front tray, 150 kg for the operator, and 100 kg on the rear tray*.

LCD Dash Display: Equipped with an LCD dash display, the vehicle offers selectable travel settings and diagnostic features for easy monitoring and operation.

Electronic Power Steering: The J1HD Super Joey comes with electronic power steering and infinitely variable speed control, ensuring smooth and precise manoeuvrability.

Convenient Fingertip Controls: The retractable vehicle guardrails integrate finger-tip controls, providing ease of operation and enhanced operator efficiency.

Sturdy Construction: Boasting a premium steel I-beam mast construction and unitized steel frame, this task support vehicle ensures durability and stability.

Exceptional Manoeuvrability: With a 180-degree articulating driveline and a minimum turn aisle of 2 metres, the J1HD Super Joey easily navigates tight spaces.


The J1HD Super Joey is the ideal solution for large warehouses and distribution centres seeking to enhance their material handling efficiency. Its impressive lift capacity and height allow it to access higher racking levels, making it perfect for multi-level storage facilities. With its fast travel speed, this task support vehicle is well-suited for swiftly moving between storage and shipping areas, minimising downtime and increasing productivity. The option for a 48V Li-ion power system ensures extended run-times, making the J1HD Super Joey an excellent choice for heavy-duty applications with demanding duty cycles.

Mast Options: 4200 mm
Technical Specifications
Capacity (kg):

600 kg

Load Centre Distance (mm):

600 mm

Max Height (mm):

5300 mm

Battery Voltage/Normal Capacity:

48V/224Ah Lithium

Battery Onboard:

Lithium Ion Battery with external charger

Travel Speed: (km/h)

10.5/10.5 kph

Drive Control:



Order Picker
