Electric Pallet Stacker

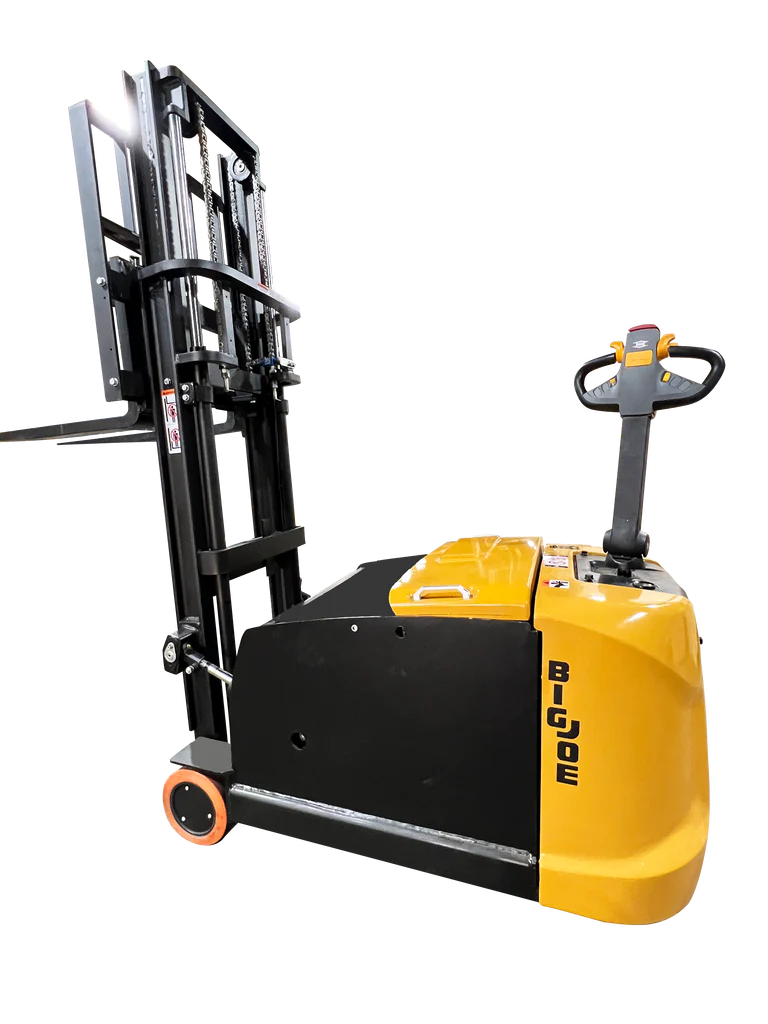

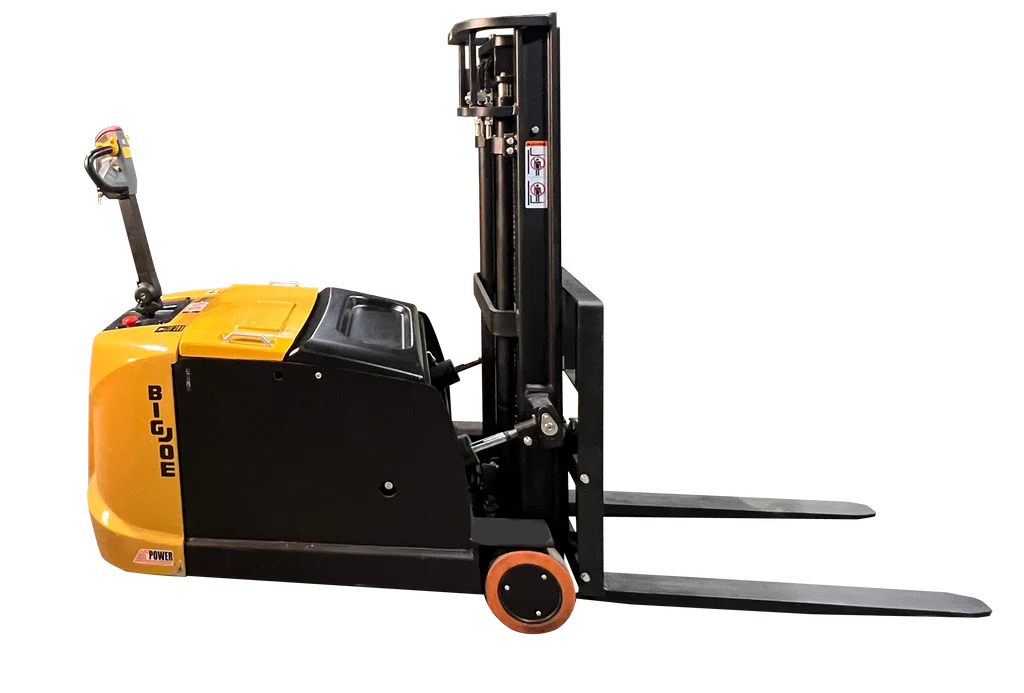

The new Big Joe CB35 Counterbalanced Walkie Stacker is a compact alternative to sit-down forklifts with lower operating costs and the convenience of walking speeds.


Compact and Maneuverable: The CB35 features a cast rear counterweight that shortens the chassis, combined with electric power steering, allowing easy maneuverability in tighter areas and enhancing operational efficiency.

Improved Ground Clearance: Ground clearance has been significantly improved, making the CB35 ideal for dock work and easily navigating uneven surfaces.

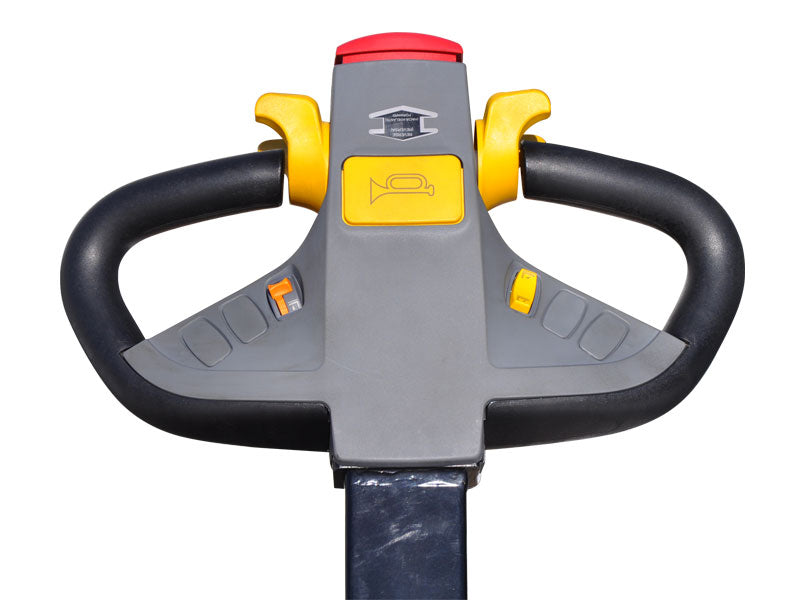

Proportional In-Handle Controls: Standard in-handle controls enable precise and accurate pallet placement, streamlining material handling tasks.

Versatile Battery Options: The CB35 offers a range of battery options, including a UL-recognized 205Ah lithium battery, making it adaptable for various use cases and attachment needs, such as an optional side shifter or clamp.

Enhanced Safety: The CB35 is an excellent choice for areas with pedestrians as it reduces blind spots and operates at lower speeds, prioritising safety in operations.


Whether you need a flexible truck for modest needs or a fleet supplement, the CB35 series ensures enhanced safety and solid productivity. Elevate your material handling operations with the new Big Joe CB35 Counterbalanced Walkie Stackers. Experience the reliability, efficiency, and safety features that have been perfected over decades of innovation and expertise.

Mast Options: 4000 mm
Technical Specifications
Capacity (kg):

1600 kg

Load Centre Distance (mm):

500 mm

Max Height (mm):

5000 mm

Battery Voltage/Normal Capacity:


Battery Onboard:

205ah Lithium Battery with external charger

Travel Speed: (km/h)

5.5/6.0 km/h

Drive Control:



Electric Pallet Stacker
