Walkie Straddle Stacker

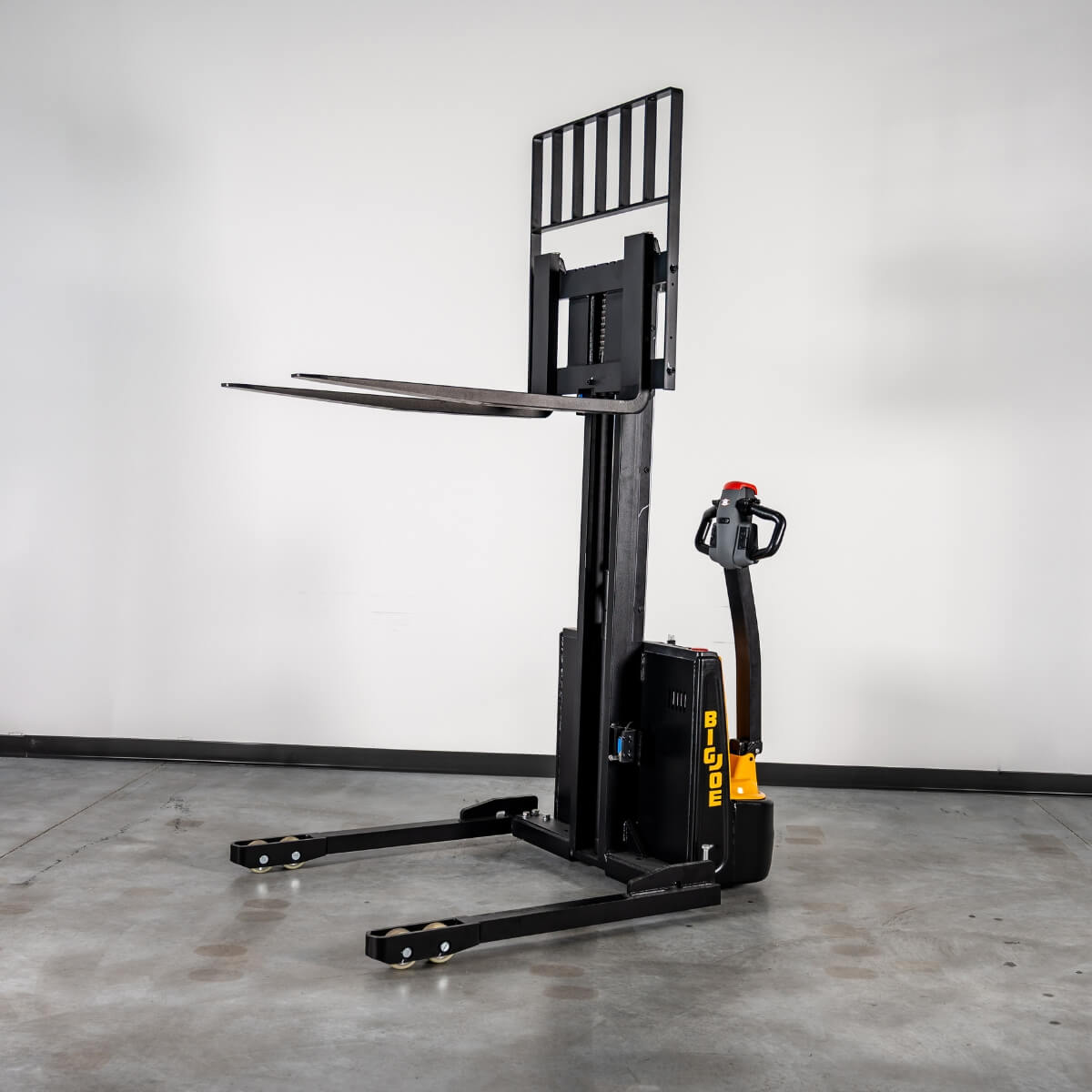

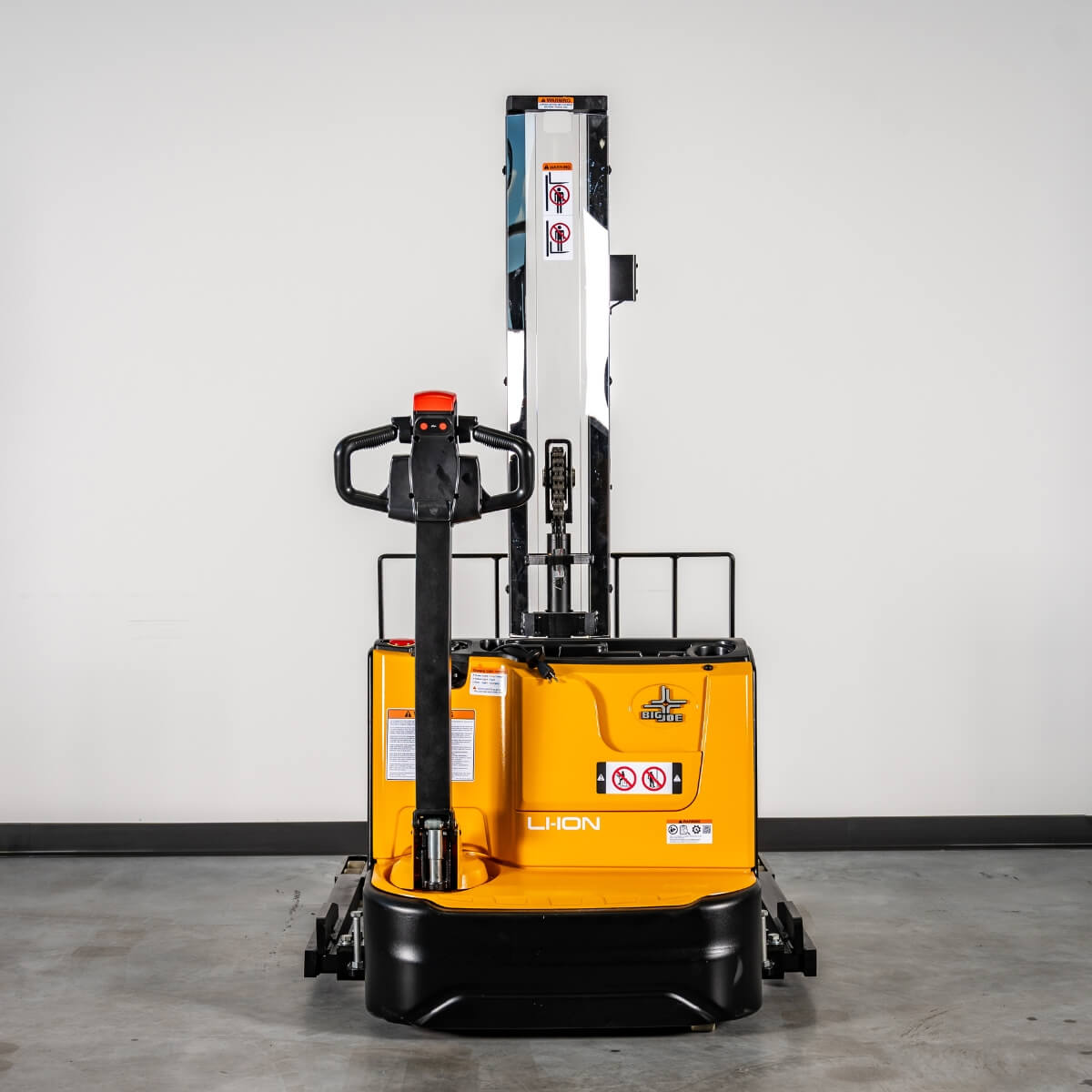

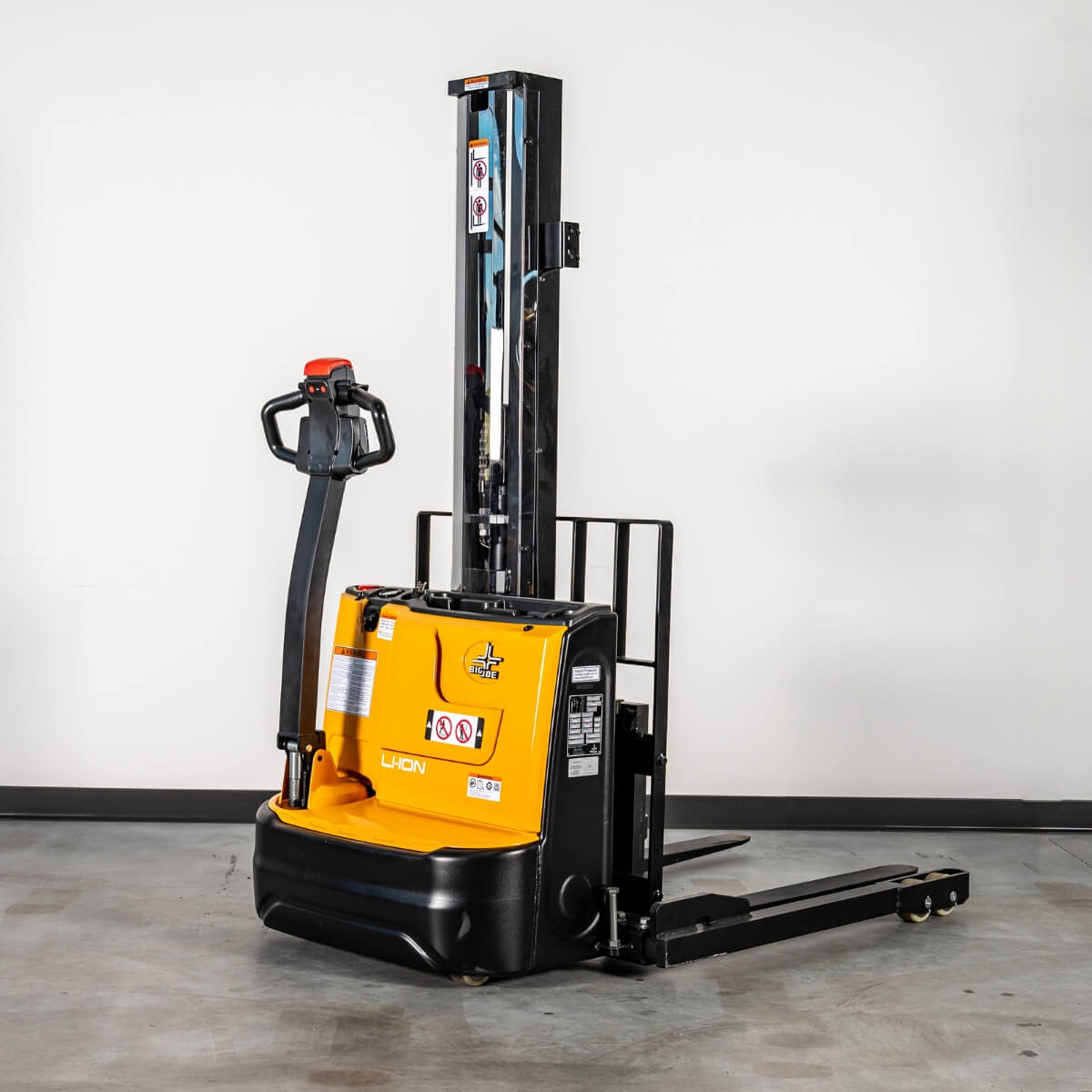

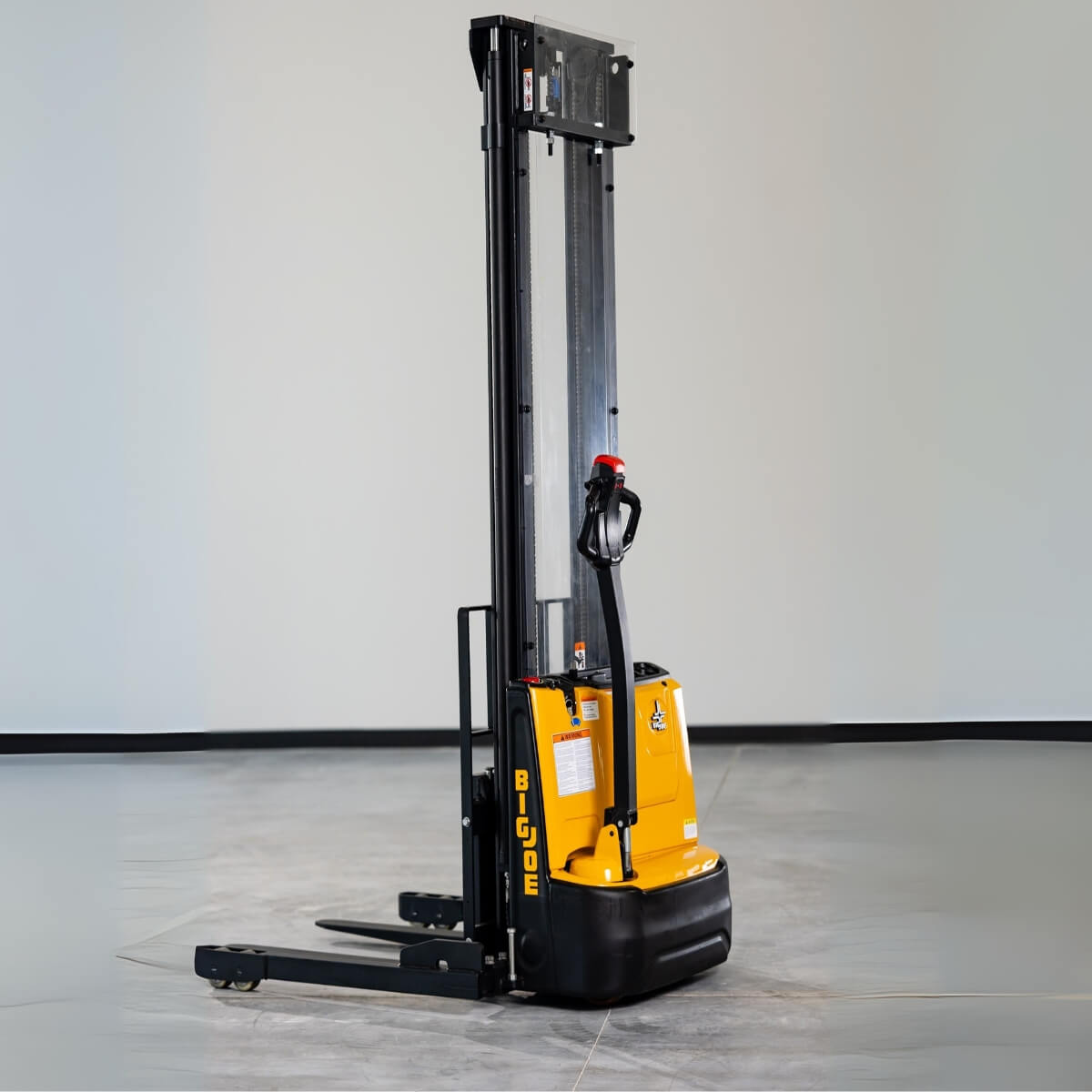

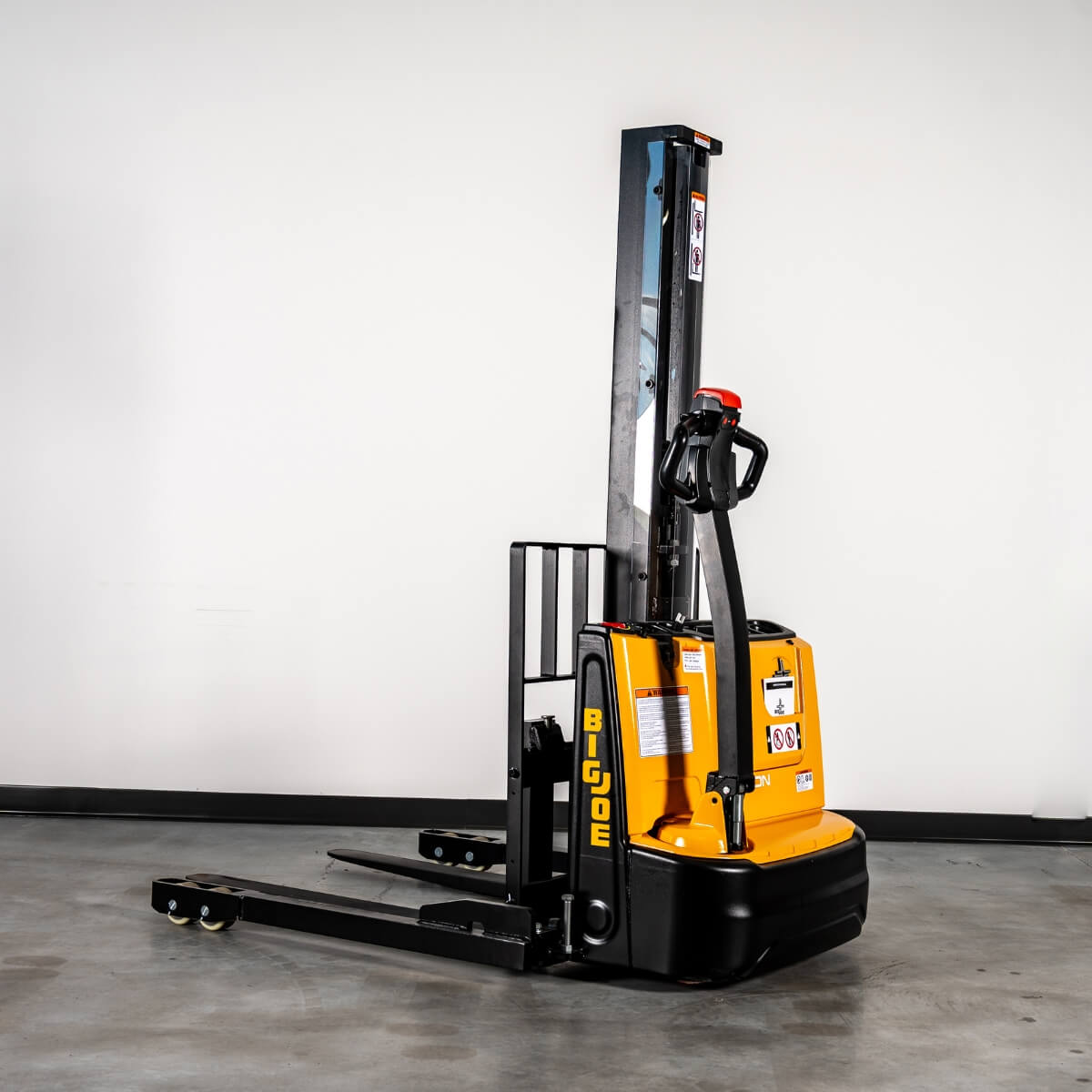

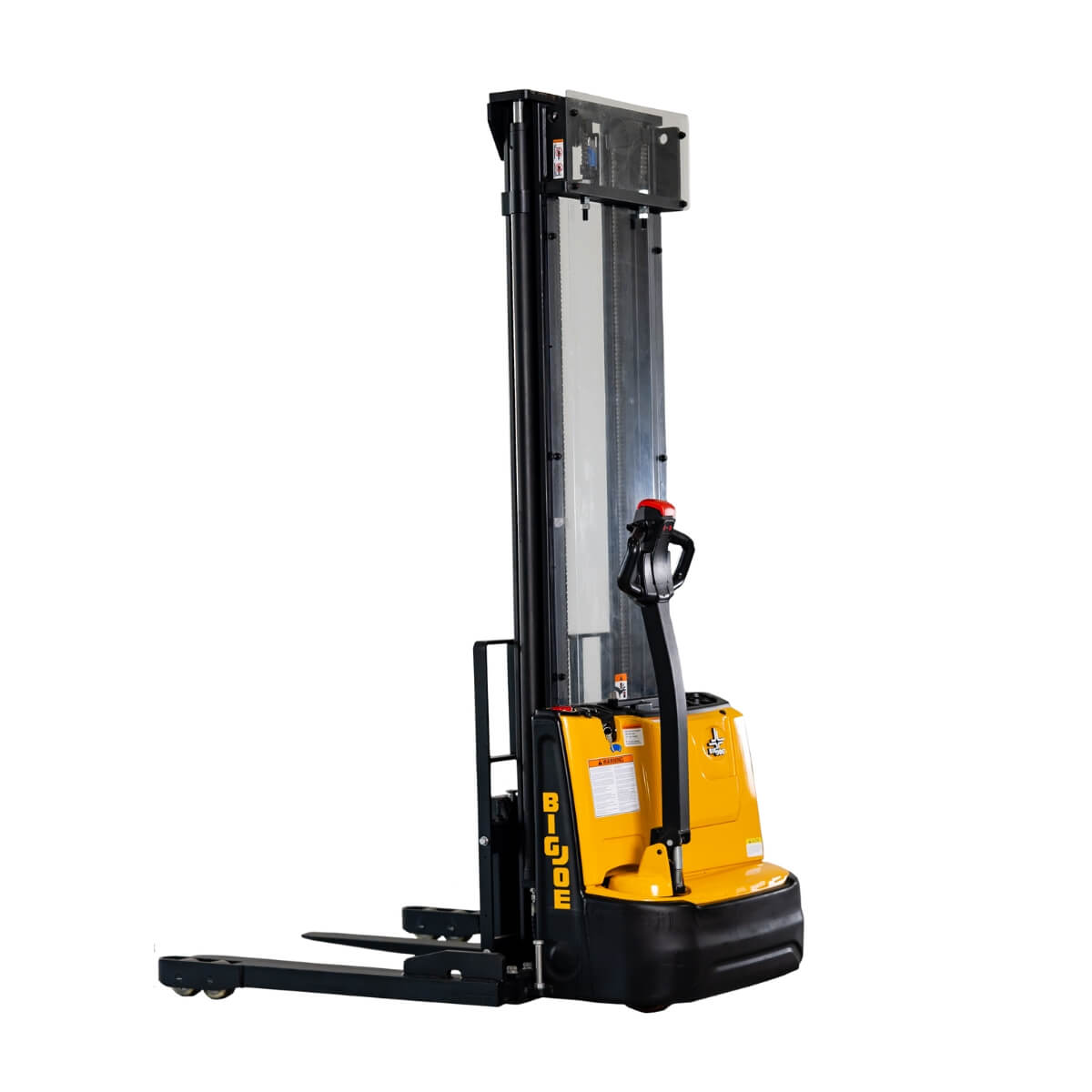

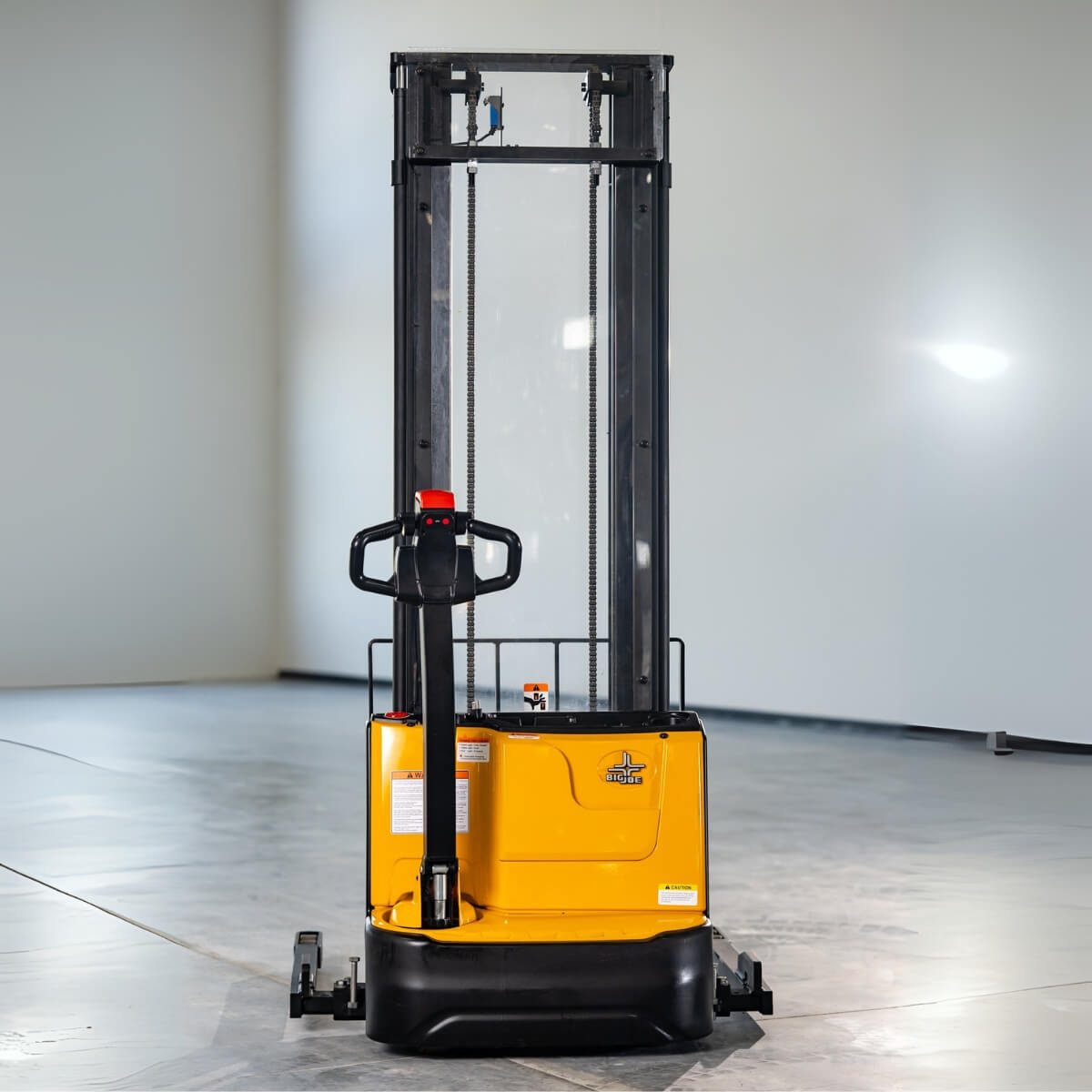

BIG JOE - S26 | Walkie Straddle Stacker
The Big Joe S26 Walkie Straddle Stacker is a powerful, lithium-powered material handling solution designed for warehouse environments that demand agility, strength, and operator comfort.
Built to perform with exceptional precision and reliability, this stacker is perfect for lifting, stacking, and transporting palletised goods in tight aisles and demanding operations.
Features
High-Capacity Performance
This unit offers a lifting capacity of 1,179 kg at a 600 mm load center, maintaining full capacity with no derate up to 3,200 mm, making it suitable for a broad range of pallet handling needs.
Advanced Lithium Battery
Equipped with a 24V 105Ah Li-Ion battery, the stacker supports fast charging in under 3 hours and requires no regular maintenance or facility upgrades like eyewash stations or dedicated ventilation systems.
Smooth & Responsive Speed Control
-
Travel Speed: 4.5 km/h (empty) / 4.0 km/h (loaded)
-
Lift Speed: Up to 239 mm/s (empty) / 147 mm/s (loaded)
-
Lowering Speed: Up to 208 mm/s (empty) / 198 mm/s (loaded)
Premium Drive & Hydraulics
A 3 kW DC drive motor delivers high torque and energy efficiency, extending the duty cycle. The lift cylinder and hydraulic pump provide smooth, controlled lift and lower actions with a premium solenoid-fired motor.
Precision Operator Controls
Includes an ergonomic control handle with integrated travel, lift, and lower functions, reversing switch, USB charging port, and thumb controls — all accessible without releasing the grip. The offset steer arm enhances operator visibility and enables right-angle stacking in aisles under 2.13 m wide.

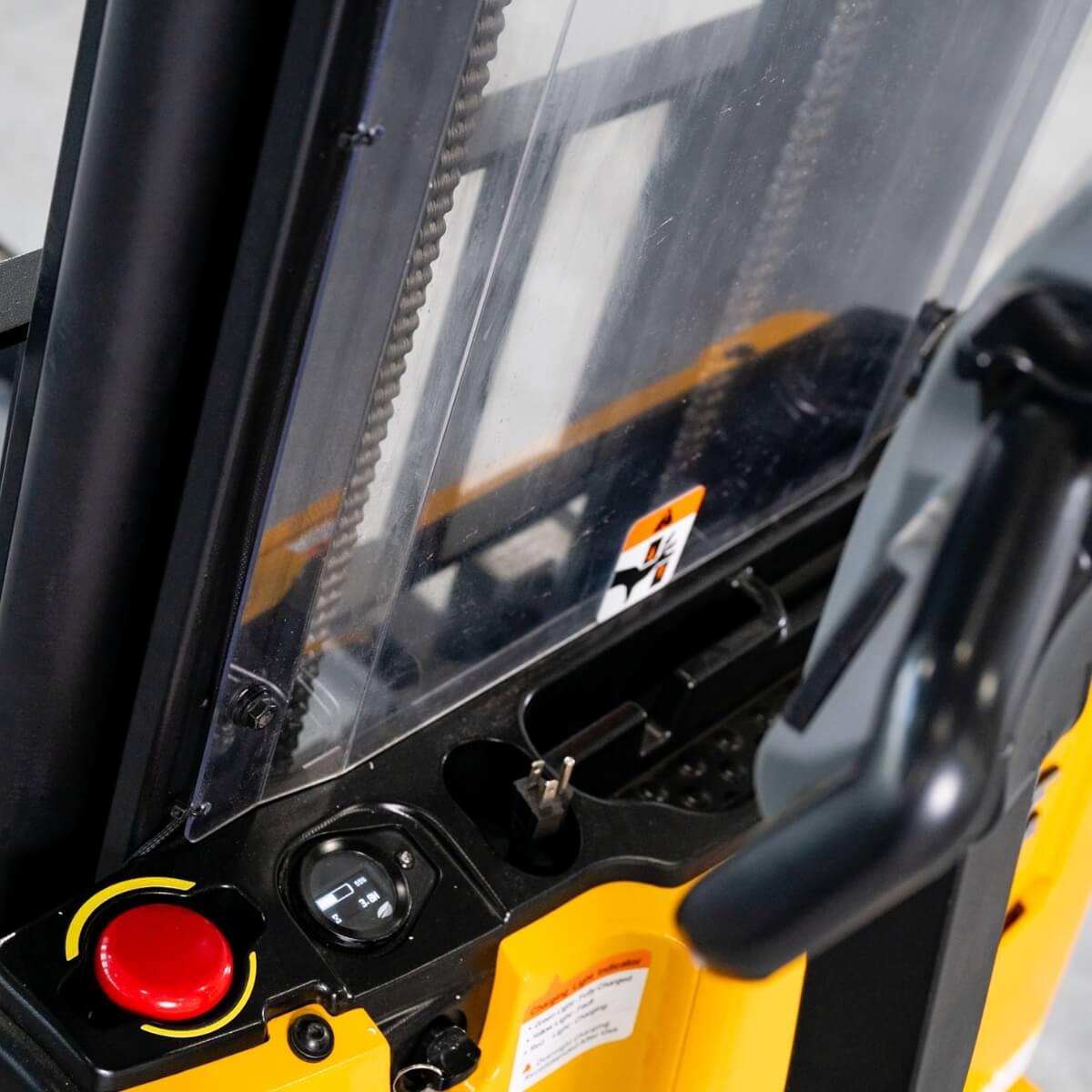

Advanced Electrical System
Powered by a 24V Curtis controller, the unit maintains constant travel speed proportional to throttle input regardless of load. Features include:
-
Bluetooth-connected battery discharge indicator
-
Fused control circuits
-
Quick-disconnect emergency power cut-off

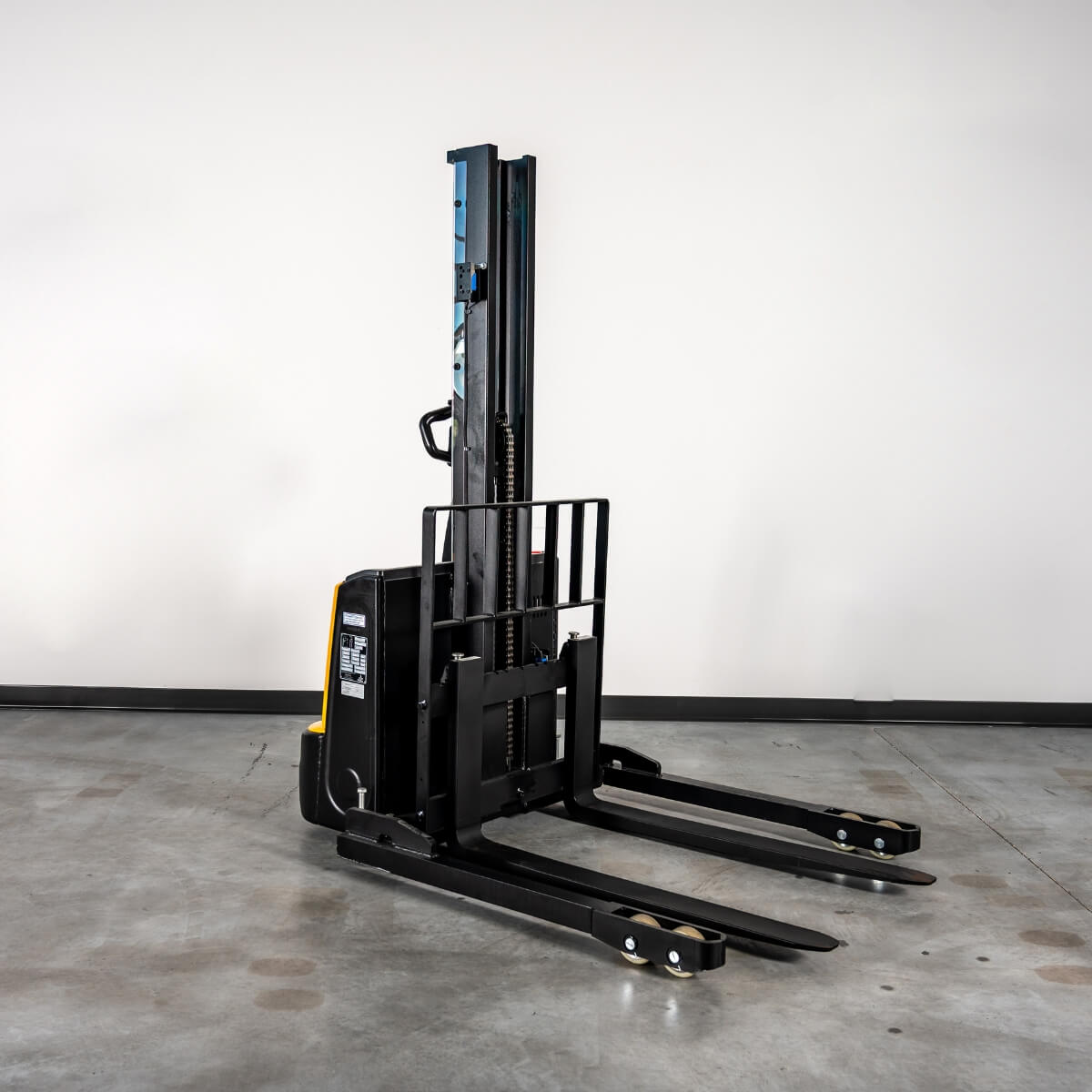

Adjustable Straddle Legs
82.5 mm wide adjustable straddle legs accommodate various pallet sizes. Widths are adjustable from 990 mm to 1,220 mm in 76 mm increments. Tandem load wheels with enclosed guards and flush-mounted axles help prevent wear and damage.
Service-Friendly Design
A two-piece removable power head cover provides easy access to internal components, simplifying routine maintenance and inspections.
Optional Add-Ons
-
1,220 mm Forks
-
Forward Blue Safety Light
-
Rearward Blue Safety Light
Applications
This electric straddle stacker is engineered for warehousing, distribution centres, and manufacturing facilities where space efficiency, performance, and operator comfort are critical. It is ideal for managing heavy and fragile loads and supports precision stacking even in narrow aisle environments.
With the Big Joe S25, your operations gain a high-performance material handling solution designed to boost productivity, ensure safety, and deliver reliable long-term value.
